MAUS LADEN
Charging cabinet for lithium batteries with fire protection
This metal cabinet is designed for the safe charging of lithium batteries and contains a complete automatic extinguishing system from MAUS.
Each cabinet contains STIXX PRO fire protection units connected in series to respond simultaneously when a critical temperature is reached.
No electrical power is required; protection is always active..
Tested by insurance companies.
Fire protection at 170 °C
The extinguishing system activates at high temperature — without any external power supply.
Plug & Play installation
230 V sockets installed inside the cabinet — ready for charging.

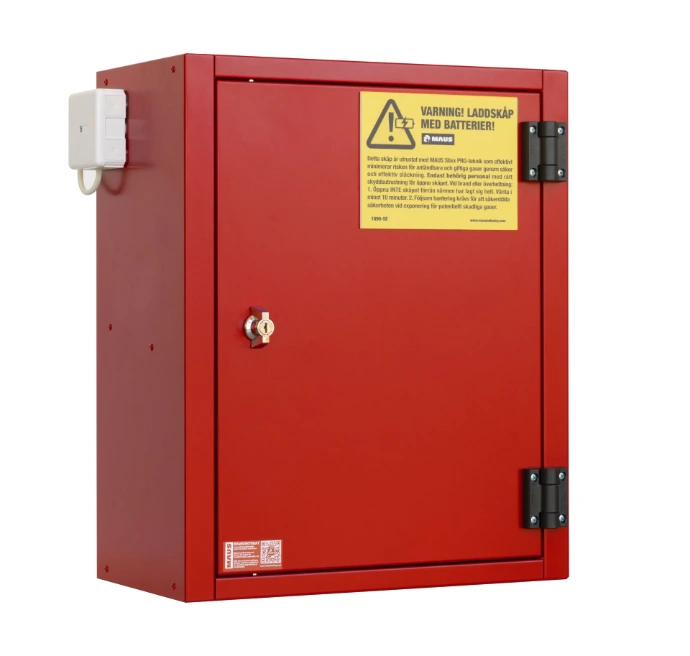

Lockable for secure storage
Stable construction with cam lock for enhanced security.
For industrial and private use
Designed for workshops, industrial environments, and home charging of power tools.
MAUS LADEN

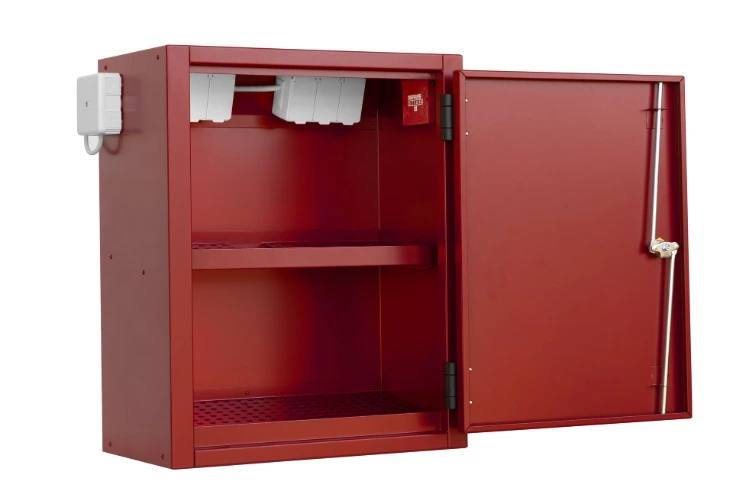

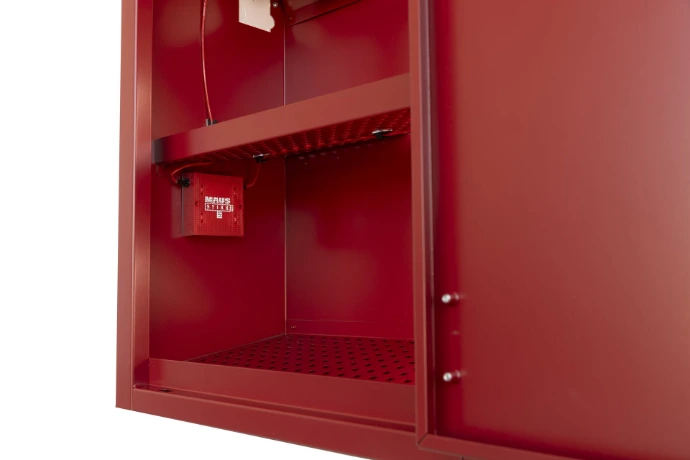

The charging cabinet is a robust unit equipped with several integrated charging points. An intelligent safety solution, it allows for controlled and secure charging against fires for lithium-ion batteries. Made from durable metal, it features perforated shelves ensuring effective dispersion of extinguishing agents.
The shelves are designed for cable passage, and a sturdy mortise lock ensures the cabinet closes in the event of a fire. The spring hinges serve two important functions: they prevent the cabinet from remaining open and accumulating dust when not in use, and they help keep the door closed, thus retaining the extinguishing agent even if the cabinet is not locked.
The electrical components of the cabinet comply with IP standards, making it usable in virtually all environments.

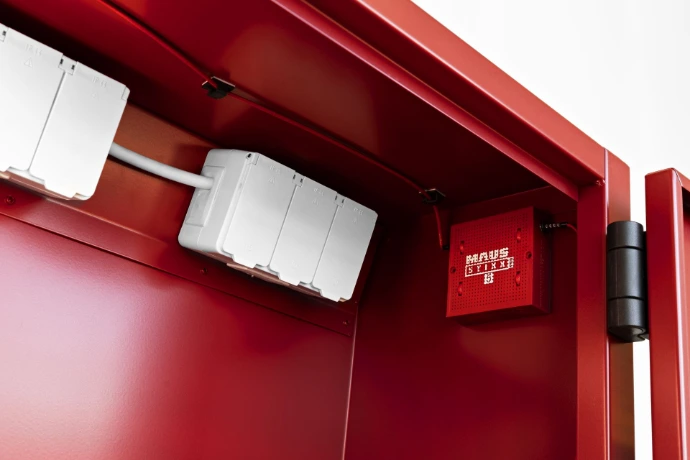

The Laden series charging cabinets are equipped with Stixx PRO modules, passive and pressure-free fire extinguishing devices that activate automatically in case of high heat.
This solution has been tested in collaboration with Safety & Navigation Group, Optimel, and insurance companies.
Units
Small cabinet
Dimensions: 48 cm (width) × 35 cm (height) × 25 cm (depth)
3 charging points
1 shelf
1x MAUS STIXX PRO 5
Medium cabinet
Dimensions: 48 cm (width) × 35 cm (height) × 25 cm (depth)
6 charging points
2 shelves
2x MAUS STIXX PRO 5
Large cabinet
Dimensions: 720 mm (width) x 730 mm (height) x 30 mm (depth)
12 charging points
3 shelves
4x MAUS STIXX PRO 5
Applications
Repair workshops
Machine rooms
Industrial premises
Construction sites
Private garages & Storage
Any location for secure charging
Features
Dimensions: Multiple options
Warranty: 5 years (6 years lifespan) for installed STIXX PROs
Operating temperature: -30°C to 70°C
Discharge time: 5 s
Activation temperature: 170°C ± 10°C
